SPEED LE Serial Card

SPEED LE serial cards are ideal for Windows and Linux based servers that require 1 to 8 local serial ports for Point of Sale, kiosks, industrial automation or data collection applications

Get a quoteProduct question?
  • Overview
  • Technical Specs
  • Documentation
  • Ordering Details

Features and Benefits

  • Universal 3.3/5v PCI bus slot support (PCI 2.3 compliant)
  • PCI-X compatible
  • Flexible solutions with 1, 2, 4 or 8 serial ports
  • EIA-232 (RS232) interfaces
  • Windows and Linux Operating System support
  • Bi-directional speeds up to 921.6 Kbps
  • 15 kV ESD provides protection against electrostatic discharges and power surges
  • Full modem control and hardware/software flow control
  • Low-profile or standard height
  • Self-service support and 2 Year Warranty
  • RoHS and WEEE compliant

Class Leading Support and Warranty

Perle SPEED LE Serial Cards are backed by a 2 Year Warranty and a comprehensive on-line knowledge base for technical support. Since 1976 Perle has been providing its customers with networking products that have the highest levels of performance, flexibility and quality.

Click diagram for larger picture

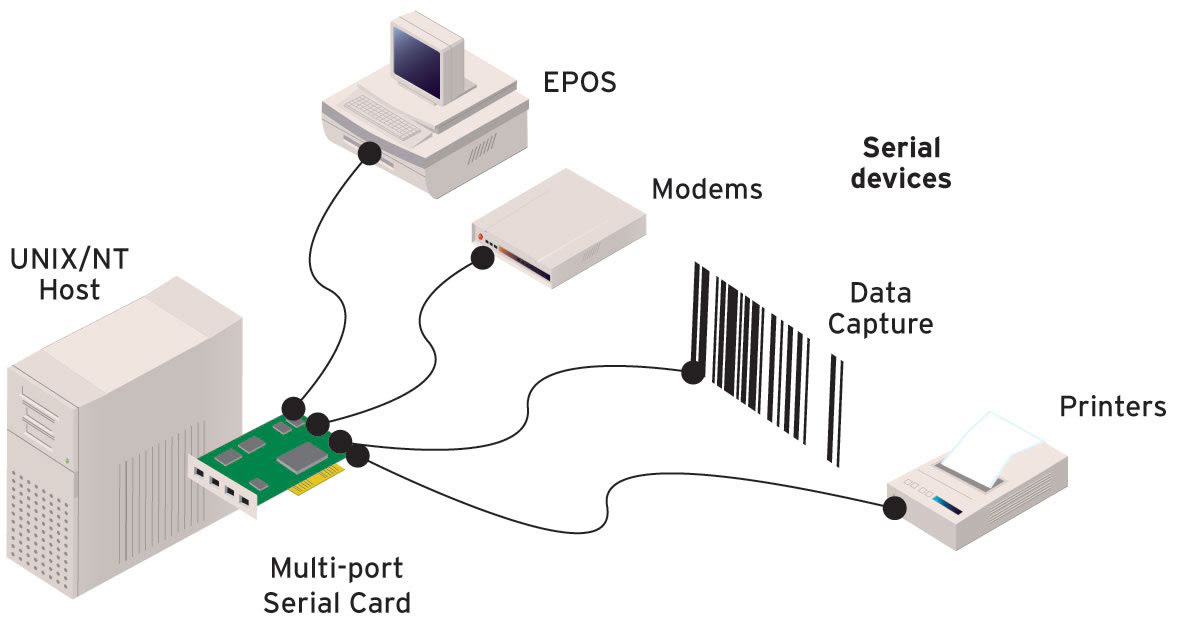

Diagram SPEEDLE Serial Card

Diagram SPEEDLE Serial Card

Diagram SPEEDLE Serial Card

HTSUS Number: 8473.30.1040 ECCN Code: 5A991

SPEED LE Serial Cards - Technical Specifications

Supported Operating System Drivers

  • Windows® Vista (32 / 64 Bit)
  • Windows® Server 2003  (32 / 64 Bit)
  • Windows® XP (32 / 64 Bit)
  • Windows® 2000
  • Linux 3.x, 2.6.x, 2.4.x, 2.2.16+ (32 / 64 Bit)

Connectors

  • SPEED1 LE : 1 on-board DB9M
  • SPEED2 LE : 2 on-board RJ45
  • SPEED4 LE : 4 on-board RJ45
  • SPEED4 LE HD: Single VHDCI-68 female connector
  • Includes 18 inch (45cm) DB9 fanout cable
  • Connector Options include DB9, DB25 and RJ45 connector boxes and fan-out cables
  • SPEED8 LE HD: Single VHDCI-68 female connector
  • Connector Options include DB9, DB25 and RJ45 connector boxes and fan-out cables

Signal support

TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI

Approvals

  • FCC Part15 ,Class B
  • EN55022 Class B
  • ICES-003, Class B

Form Factor

SPEED1 LE, SPEED2 LE, SPEED4 LE HD and SPEED8 LE HD are low profile MD1 cards shipped with standard sized brackets. Low profile brackets are included
