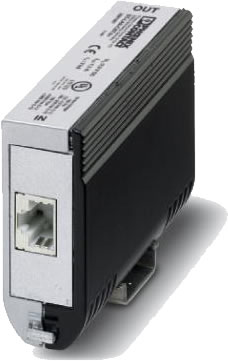

DT-LAN-CAT6 Surge Protector
CAT5/6/7 Data Line Lightning Surge Protector
DT-LAN-CAT6 Surge Protector
- Protection for data interfaces
- Reliable transmission speeds up to 10 Gbps
- Protective adapter for eight signal paths via RJ45 connector (including PoE+)
- Suitable for category 6 high-speed data networks
- Can be installed in a control cabinet by removing the ground connection adapter
The DT-LAN-CAT6 is a protective adapter to be inserted into the data line for the protection of LAN interfaces and the RJ45 cable.
Surge protection for information technology
Reliable data is indispensable in today's industry. The sensitive systems used in LANs work with high frequencies at low signal levels and are networked over a wide area. Surge voltages can quickly lead to largescale failures and, in the worst-case scenario, data loss. Data Line Surge protectors are specifically designed to protect your investment in expensive wired, wireless and PoE equipment.
High-speed data protection
If you need effective Lightning, RFI, ESD and transient surge protection for highspeed data transmission, the DT-LAN-CAT.6+ offers universal protection without affecting the signal at network speeds of up to 10 Gbps.
Suitable for the following environments
- 100/1000/10G-Base-T
- Power over Ethernet (PoE+) “Mode A” and “Mode B”
- TOKEN Ring
- FDDI/CDDI
- ISDN
- DS1
- VG-AnyLAN
- PROFINET
Surge protection in accordance with Class EA (CAT6A). RJ45 attachment plug with separate grounding cable and ground connection snap-on foot for NS 35 DIN rails.
DT-LAN-CAT.6+ Technical Specifications
| Ambient Conditions | |
|---|---|
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Degree of protection | IP20 |
| Protective circuit | |
| IEC test classification | B2 |
| C1 | |
| C2 | |
| C3 | |
| D1 | |
| Maximum continuous voltage UC | ≤ 3.3 V DC (± 60 V DC/PoE+) |
| Rated current | ≤ 1.5 A (25 °C) |
| Operating effective current IC at UC | ≤ 1 µA |
| Residual current IPE | ≤ 400 µA |
| Nominal discharge current In (8/20) µs (Core-Core) | 100 A |
| Nominal discharge current In (8/20) µs (core-earth) | 2 kA (per signal pair) |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Nominal pulse current Ian (10/700) µs (Core-Core) | ≤ 40 A |
| Nominal pulse current Ian (10/700) µs (Core-Earth) | ≤ 160 A |
| Output voltage limitation at 1 kV/µs (core-core) spike | ≤ 85 V (PoE) |
| Output voltage limitation at 1 kV/µs (core-earth) spike | ≤ 700 V |
| Output voltage limitation at 1 kV/µs (core-core) static | ≤ 9 V |
| Output voltage limitation at 1 kV/µs (core-earth) static | ≤ 700 V |
| Residual voltage at In (conductor-conductor) | ≤ 15 V |
| ≤ 100 V (PoE) | |
| Voltage protection level Up (core-core) | ≤ 9 V (B2 - 1 kV/25 A) |
| ≤ 100 V (B2 - 1 kV/25 A - PoE) | |
| ≤ 15 V (500 V / 100 A) | |
| Voltage protection level Up (core-ground) | ≤ 900 V (B2 - 4 kV/100 A) |
| ≤ 700 V (C2 - 4 kV/2 kA) | |
| Response time tA (core-core) | ≤ 1 ns |
| Response time tA (core-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | ≤ 1 dB (up to100 MHz/direct measuring) |
| ≤ 1 dB (up to 250 MHz/direct measuring) | |
| ≤ 3 dB (up to 500 MHz/direct measuring) | |
| Near-end crosstalk attenuation | ≥ 35 dB (250 MHz/100 Ω/link) |
| ≥ 45 dB (100 MHz / 100 Ω / Link) | |
| ≥ 27 dB (500 MHz / 100 Ω / Link) | |
| ≥ 39 dB (250 MHz/100 Ω/direct measuring) | |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system | > 500 MHz |
| Capacity (core-core) | typ. 12 pF (f= 1 MHz / VR= 0 V) |
| Capacity (core-earth) | typ. 2 pF (f= 1 MHz / VR= 0 V) |
| Surge protection fault message | None |
| Impulse durability (conductor-conductor) | B2 - 1 kV / 25 A |
| Impulse durability (conductor-ground) | B2 - 4 kV/100 A |
| C2 - 4 kV/2 kA | |
| D1 - 1 kA | |
| General | |
| Housing material | Zinc die-cast |
| Color | silver/black |
| Mounting type | Connection-specific attachment plug and DIN rail, 35 mm |
| Design | Attachment plug for DIN rail mounting |
| Number of positions | 8 |
| Direction of action | Line-Line & Line-Ground/Shield |
| Connection, equipotential bonding | |
| Connection method | Cable connection |
| Connection data | |
| Connection method | RJ45 |
| Connection method IN | RJ45 socket |
| Connection method OUT | RJ45 socket |

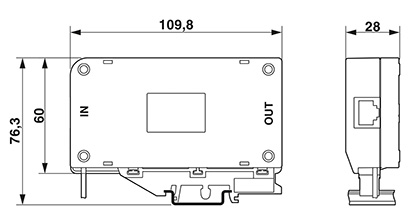

| Dimensions | |
| Height | 102 mm |
| Width | 25 mm |
| Depth | 63.5 mm |
 |
|
| Standards and Regulations | |
| Standards / specifications | IEC 61643-21 2002 |
| EN 50173-1 2002 | |
| ISO/IEC 11801-Am.1 2006 | |
| Environmental Product Compliance | |
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| Reach and RoHS Compliant | Reach and RoHS Compliant |
| Approvals | |
| UL Listed EAC |
|
| Commercial data | |
| Packing unit | 1 |
| Weight per piece | 320.0 g |
| Country of origin | Germany |
| Data Line Surge Protector Application Diagram |
|---|
 |
| Circuit Diagram |
 |
| Protection Against Surge Voltage |
LAN systems are safely protected against surge voltage by CAT6 Surge Protectors. Due to the high bandwidth of the surge protectors, the transmission signal is not influenced. All signal wires and the ground conductor must be connected to the surge protector according to the connection scheme. Any DIN rail should be grounded. |
