IDS-105F Industrial Ethernet Switch
5 port Compact DIN Rail Switch

- 4 port 10/100Base-TX ( RJ45 ) with an SC/ST fiber port
- Hazardous Location and Industrial Control Equipment Certification
- Corrosion resistant IP30 aluminum case
- Redundant dual power input 12/24/48 VDC, 18 to 30 VAC
- Overload current and reverse polarity protection
- Industrial operating temperature support up to -40 to 75C
Perle Industrial-grade Ethernet Switches are designed for industrial automation, government, military, oil and gas, mining and outdoor applications.
The IDS-105F 5 port Industrial Ethernet Switch provides advanced performance and enables real-time deterministic network operation. It requires no configuration and will instantly operate as soon as you power it up.
The IDS-105F, which comes in a variety of models, are rugged fanless switches that are hardened to provide superior reliability in 0 to 60°C, or harsh extended operating temperatures from -40 to 75°C.
Perle has been designing industrial hardware for serial ModBus and Profinet to Ethernet conversion environments for over 35 years and have used this expertise to design the toughest Ethernet switches on the market. Don’t trust your critical communications to commercial switch products. Perle Industrial Ethernet switches give you proven assurance that your system will keep running for years to come.
IDS-105F Industrial Ethernet Switch Features
Rugged design for harsh environments |
|
Reliable operation |
|
Real-time Ethernet performance |
|
FCC Class B Certification |
|
Power | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dual Power Input |
Both inputs draw power simultaneously. If one power source fails, the other live source can, acting as a backup, supply enough power to meet the operational needs of the switch. 12/24/48 VDC Nominal. (9.6 to 60 VDC) 18 to 30 VAC |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | 4-Pin Removable Terminal Block. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connector | Grounding screw on metal chassis | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum Current Consumption @24 vDC |
140 mA | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum Power Consumption @24 vDC |
3.4 Watts | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overload Current Protection |
Reset-able fuse provides overload current protection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reverse polarity protection |
The positive and negative inputs can be reversed providing safe and simple power connectivity. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Ports | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RJ45 | 4 shielded RJ45 ports for 10/100Base-TX up to 100 meters (328 ft) Auto-negotiation Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types Ethernet isolation 1500 V |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fiber port | 1 x fixed fiber port Duplex SC or ST connector
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fixed Fiber Port Specs |
* 1db/km multimode fiber cable ** as per ITU-T G.652 SMF specifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switch Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standards |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Processing Type | Store and Forward, non-blocking architecture | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MAC Address Table Size | 1024 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packet Buffer Memory | 512 Kbit | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicators | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
P1 | This green LED is turned on when power is applied to the power #1 input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
P2 | This green LED is turned on when power is applied to the power #2 input | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RJ45 Ethernet | These integrated colored LEDs indicate link, activity and speed for each port. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fiber Link | Fiber link LED indicates Link and Data Activity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental Specifications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature Ranges | Standard temperature models : 0° C to 60° C (32° F to 140° F). Industrial extended temperature models : -40° C to 75° C (-40 F to 167° F) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature Range | Minimum range of -25° C to 70° C (-13° F to 158° F). -40 C to 85 C (-40 F to 185 F) for industrial extended temperature models | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity Range | 5% to 90% non-condensing | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity Range | 5% to 95% non-condensing | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Altitude | Up to 3,048 meters (10,000 feet) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Chassis | Aluminum with an IP30 ingress protection rating | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Din Rail Mountable | DIN Rail attachment included. Mounts to standard 35 mm DIN rail in accordance with DIN EN 60175. Removable to accommodate optional Panel/Wall mount kit |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Maximum Heat Output | 11.6 BTU/Hr | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTBF | 913,428 hours (without fiber module) 717,100 hours (with fiber module) MTBF Calculation model based on MIL-HDBK-217-FN2 @ 30 °C |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Weight and Dimensions | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 0.19 kg, 0.3 lbs | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 30 x 115 x 70 mm, 1.18 x 4.52 x 2.76 inches | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shipping Weight | 0.34 kg, 0.8 lbs | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shipping Dimensions | 170 x 260 x 70 mm, 6.69 x 10.24 x 2.76 inches | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contents Shipped | Industrial Ethernet Switch with DIN Rail attachment Terminal block Installation guide |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Standards and Certifications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Safety | UL/EN/IEC 62368-1 CAN/CSA C22.2 No. 62368-1 UL 60950-1 CSA C22.2 No. 60950-1 IEC 60950-1:2005+A1:2009 and EN 60950-1:2006+A11:2009+A1:2010+A12:2011 CE Mark UL508 (Industrial) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
EMC Emissions | FCC 47 Part 15 Class B ICES-0003 CISPR 22:2008/EN55022:2010 (Class B) EN61000-6-4 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
EMC Immunity | CISPR 24:2010/EN 55024:2010 IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 6kV, Air Discharge +/- 8kV IEC/EN 61000-4-3 (RS) : 80 MHz to 2.7 Ghz ; 10V/m, 800 MHz to 1000 MHz; 20V/m IEC/EN 61000-4-4 (EFT) : DC power line +/- 2 kV, Data Line +/- 2kV IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kV, Line/Earth +/- 2kV, Data Line line/earth +/- 1kV IEC/EN 61000-4-6 (CS) : 150kHz to 80 MHz; 10V IEC/EN 61000-4-8 (Magnetic Field): 30 A/m IEC/EN 61000-6-2 (General Immunity in Industrial Environments) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Industrial Safety | UL508 (Safety standard for Industrial Control Equipment) CSA C22.2 No. 142 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hazardous Locations (Hazloc) |
ANSI/ISA 12.12.01, Class I Division 2 Groups A-D (formerly known as UL 1604) CSA C22.2 No. 213 ATEX Class I Zone 2, EN60079-0,15 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Laser Safety | EN 60825-1 Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental | Reach, RoHS and WEEE Compliant | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Other | ECCN: 5A991 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HTSUS Number: 8517.62.0020 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5 year warranty |

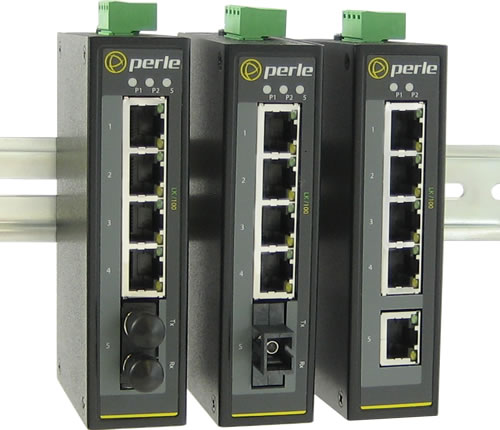

IDS-105F with Standard DIN Rail |
---|
Click on image to see larger version ![]() |
IDS-105F with Optional Wall/Panel Mount Brackets |
Click on image to see larger version ![]() |
IDS-105F Industrial Switch Diagram |
---|
![]() |
Single Mode / Single Strand ( WDM ) Fiber |
Connecting devices over a single fiber strand ( also referred to as “Bi-Directional” BiDi or Simplex) To reduce costs, or where there are limits on available fiber, Wavelength-Division Multiplexing (WDM) technology may be utilized. WDM uses separate transmit and receive frequencies to communicate on a single fiber strand. WDM technology relies on the fact that optical fibers can carry many wavelengths of light simultaneously without interaction between each wavelength. Thus, a single fiber can carry many separate wavelength signals or channels simultaneously. WDM systems are divided into different wavelength patterns, conventional/coarse (CWDM) and dense (DWDM). ![]() When Single Strand fiber is used, you will need an “Up” side and a “Down” side when interconnecting fiber devices. Perle offers a wide variety of Single Fiber (“Up/Down”) Ethernet Switches and Media Converters for use with single strand of fiber. |
Select a Model to obtain a Part Number – IDS-105F
Std = Standard Temperature models : 0° C to 60° C (32° F to 140° F).
Ind = Industrial Extended Temperature Models : -40° C to 75° C (-40 F to 167° F)
Models with 4 x 10/100Base-TX (RJ45) Connectors |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Model |
Temp |
Choose your Fiber Connection from the table below |
||||||||
Fiber |
Transmit |
Receive |
Power |
Wavelength |
Fiber |
Operating |
||||
Min |
Max |
Min |
Max |
|||||||
IDS-105F-M2SC2 | Std | 1 x Duplex SC | -20.0 | -12.0 | -31.0 | -14.0 | 11.0* | 1310 | MMF | 5 km* (3.1 mi) |
IDS-105F-M2SC2-XT | Ind | 1 x Duplex SC | -20.0 | -12.0 | -31.0 | -14.0 | 11.0* | 1310 | MMF | 5 km* (3.1 mi) |
IDS-105F-M2ST2 | Std | 1 x Duplex ST | -20.0 | -12.0 | -31.0 | -14.0 | 11.0* | 1310 | MMF | 5 km* (3.1 mi) |
IDS-105F-M2ST2-XT | Ind | 1 x Duplex ST | -20.0 | -12.0 | -30.0 | -14.0 | 10.0* | 1310 | MMF | 5 km* (3.1 mi) |
IDS-105F-S2SC20 | Std | 1 x Duplex SC | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF | 20 km (12.4 mi) |
IDS-105F-S2SC20-XT | Ind | 1 x Duplex SC | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF | 20 km (12.4 mi) |
IDS-105F-S2ST20 | Std | 1 x Duplex ST | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF | 20 km (12.4 mi) |
IDS-105F-S2ST20-XT | Ind | 1 x Duplex ST | -18.0 | -7.0 | -32.0 | -3.0 | 14.0 | 1310 | SMF | 20 km (12.4 mi) |
IDS-105F-S2SC40 | Std | 1 x Duplex SC | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF | 40 km (25 mi) |
IDS-105F-S2SC40-XT | Ind | 1 x Duplex SC | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF | 40 km (25 mi) |
IDS-105F-S2ST40 | Std | 1 x Duplex ST | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF | 40 km (25 mi) |
IDS-105F-S2ST40-XT | Ind | 1 x Duplex ST | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1310 | SMF | 40 km (25 mi) |
IDS-105F-S2SC80 | Std | 1 x Duplex SC | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1550 | SMF | 80 km (50 mi) |
IDS-105F-S2ST80 | Std | 1 x Duplex ST | -5.0 | 0.0 | -34.0 | -3.0 | 29.0 | 1550 | SMF | 80 km (50 mi) |
IDS-105F-S2SC120 | Std | 1 x Duplex SC | 0.0 | 5.0 | -35.0 | -3.0 | 35.0 | 1550 | SMF | 120 km (75 mi) |
IDS-105F-S2ST120 | Std | 1 x Duplex ST | 0.0 | 5.0 | -35.0 | -3.0 | 35.0 | 1550 | SMF | 120 km (75 mi) |
* 1db/km multimode 50/125 micron fiber cable
Single Fiber (Simplex / BiDi) Models Recommended use in pairs
Models with 4 x 10/100Base-TX (RJ45) Connectors |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Model |
Temp |
Choose your Fiber Connection from the table below |
||||||||
Fiber |
Transmit |
Receive |
Power |
Wavelength |
Fiber |
Operating |
||||
Min |
Max |
Min |
Max |
|||||||
IDS-105F-M1SC2U | Std | 1 x Simplex SC | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1310 / 1550 | MMF | 2 km (1.2 mi) |
IDS-105F-M1SC2D | Std | 1 x Simplex SC | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1550 / 1310 | MMF | 2 km (1.2 mi) |
IDS-105F-M1ST2U | Std | 1 x Simplex ST | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1310 / 1550 | MMF | 2 km (1.2 mi) |
IDS-105F-M1ST2D | Std | 1 x Simplex ST | -15.0 | 0.0 | -28.0 | -8.0 | 13.0 | 1550 / 1310 | MMF | 2 km (1.2 mi) |
IDS-105F-S1ST20U | Std | 1 x Simplex ST | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF | 20 km (12.4 mi) |
IDS-105F-S1ST20D | Std | 1 x Simplex ST | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF | 20 km (12.4 mi) |
IDS-105F-S1SC20U | Std | 1 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF | 20 km (12.4 mi) |
IDS-105F-S1SC20D | Std | 1 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF | 20 km (12.4 mi) |
IDS-105F-S1SC20U-XT | Ind | 1 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1310 / 1550 | SMF | 20 km (12.4 mi) |
IDS-105F-S1SC20D-XT | Ind | 1 x Simplex SC | -14.0 | -8.0 | -32.0 | -3.0 | 18.0 | 1550 / 1310 | SMF | 20 km (12.4 mi) |
IDS-105F-S1SC40U | Std | 1 x Simplex SC | -8.0 | -3.0 | -33.0 | -3.0 | 25.0 | 1310 / 1550 | SMF | 40 km (25 mi) |
IDS-105F-S1SC40D | Std | 1 x Simplex SC | -8.0 | -3.0 | -33.0 | -3.0 | 25.0 | 1550 / 1310 | SMF | 40 km (25 mi) |
Industrial Ethernet Switch Accessories | |
---|---|
Panel Mount kit PM3 | Brackets for attaching 30 to 45 mm wide Perle IDS industrial switches inside a control panel or to a wall for wall. |
Rack Mount Kit RM4U | Bracket for mounting one or more Perle DIN Rail switches in a standard 19” rack. Occupies “4U” of vertical rack space. 275 mm (10 inches) deep |
UNO-PS/1AC/24DC/60W DIN-Rail Power Supply | UNO-PS/1AC/24DC/60W DIN-Rail Power Supply: 24 VDC, 60 Watt with universal 85 to 264 VAC, -25 to 70°C extended operating temperature. Power Supply Specifications. |
UNO-PS/1AC/24DC/150W Power Supply | UNO-PS/1AC/24DC/150W Power Supply - DIN-Rail 24 VDC , 150 Watt power supply with universal 85 to 264 VAC, -25 to 70°C extended operating temperature. Power Supply Specifications. |
