Redundant Path Technology
Redundant Path technology assures serial port access through Active Standby and Dual Network Access modes on all dual Ethernet IOLANs.
Active Standby Mode
A dual Ethernet IOLAN in Active Standby mode will monitor its primary Ethernet connection and if it detects a loss of communication it will automatically switch to the secondary Ethernet line. This provides a hot backup on its Ethernet connection to the network.

Dual Network Access Mode
A dual Ethernet IOLAN in Dual Network Access mode provides connections to two separate networks simultanously. In the event of network equipment failure in one network, administrators have an alternate path through a second network to access their console server.

In Co-location environments where separate IT infrastructures are being managed by a single console server or console server cluster, Dual Network Access mode enables administrators of the Co-location server to manage all of the equipment versus having to have a separate set of console servers to access the equipment.
Featured on the following IOLAN Models:
IOLAN SCR Console Servers
Unparalleled Network Resilience

- 24, 40 or 56 Console Management Ports
- RS232 RJ45, Ethernet RJ45, and USB
- Optional Cellular access integration
IOLAN SCR1618
Integrated Ethernet Management Ports

- 16 x RS232 RJ45 Serial Ports
- 16 x Ethernet Management Ports
- 2 x SFP Slots supporting 1G/2.5G Fiber or 10/1000/1000 Ethernet
IOLAN SCG
Fixed Hardware Platform

- 16, 32, or 48 RS232 RJ45 Serial Ports
- 10/100/1000 RJ45 Ethernet
- AC Power

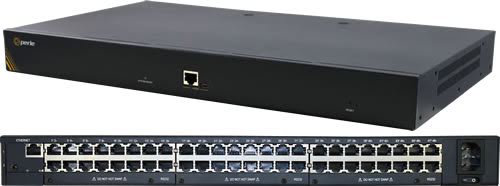

IOLAN SCG
Modular Hardware Platform

- 18, 34 or 50 Serial Console Management Ports
- RS232 RJ45, RS232/422/485 RJ45, or USB
- Dual 10/100/1000 RJ45 or SFP Fiber
- Dual AC or Dual Feed 48vDC
IOLAN SCG Modular Hardware
with additional integrated OOBM
Add integrated LTE, WiFi, and/or v.92 modem
Select 1, 2 or all 3 boxes below to view models with optional add-ons
IOLAN SCG LWM
Integrated Cellular, WiFi & Modem

IOLAN SCG Modular Platform with:
- Built-in high-speed LTE with HSPA+, UMTS, EDGE and GPRS/GSM fallback networks
- Built-in WiFi network access over dual-band radio antennas
- On-board RJ11 V.92 modem connection
IOLAN SCG LW
Integrated Cellular & WiFi

IOLAN SCG Modular Platform with:
- Built-in high-speed LTE with HSPA+, UMTS, EDGE and GPRS/GSM fallback networks
- Built-in WiFi network access over dual-band radio antennas
IOLAN SCG LM
Integrated Cellular & Modem

IOLAN SCG Modular Platform with:
- Built-in high-speed LTE with HSPA+, UMTS, EDGE and GPRS/GSM fallback networks
- On-board RJ11 V.92 modem connection
IOLAN SCG WM
Integrated Modem & WiFi

IOLAN SCG Modular Platform with:
- Built-in WiFi network access over dual-band radio antennas
- On-board RJ11 V.92 modem connection
IOLAN SCG L
Integrated Cellular

IOLAN SCG Modular Platform with:
- Built-in high-speed LTE with HSPA+, UMTS, EDGE and GPRS/GSM fallback networks
IOLAN SCG W
Integrated WiFi

IOLAN SCG Modular Platform with:
- Built-in WiFi network access over dual-band radio antennas
IOLAN SCG M
Integrated Modem

IOLAN SCG Modular Platform with:
- On-board RJ11 V.92 modem connection
IOLAN SDSC Rack
Fixed Hardware Platform>

- 8, 16, or 32 RS232/422/485 RJ45 Ports
- Dual 10/100/1000 RJ45 Ethernet
- AC Power

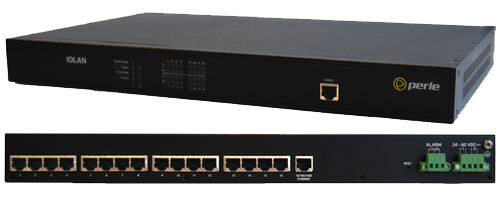

IOLAN SDSC LDC
NEBS Level 3 Certified

- 8, 16, or 32 RS232/422/485 RJ45 Ports
- Dual 10/100/1000 RJ45 Ethernet
- Dual Input 48v DC Power (18 to 72v DC)
- Operate in -40°C to +70°C

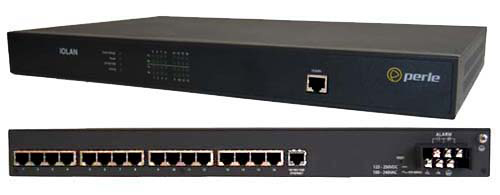

IOLAN SDSC HV/DHV
NERC CIP Substation Compliant

- 8, 16, or 32 RS232/422/485 RJ45 Ports
- Dual 10/100/1000 RJ45 Ethernet
- 88-300v DC or 85-265v AC Power
- Operate in -40°C to +70°C

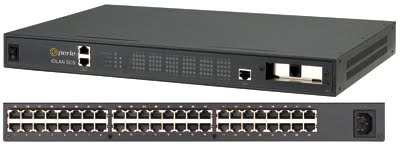

IOLAN SCS
Fixed Hardware Platform

- 8, 16, 32, or 48 RS232
- Dual 10/100/1000 Ethernet
