IOLAN SDSC LDC Console Server
for Telecommunication Facilities – NEBS Certified

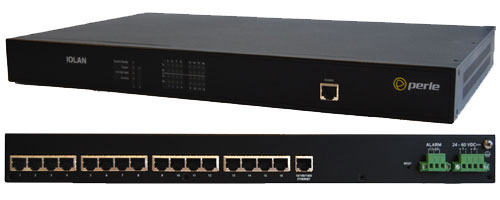

IOLAN SDS16C LDC Console Server
- 8, 16 and 32 serial ports on RJ45 – software selectable RS232/422/485
- Dual input 18 – 72v DC ( 48v DC nominal ) range
- NEBS Level 3 certified ( SR-3580 ), GR-1089-CORE, GR-63-CORE
- Advanced Security including TACACS and RADIUS authentication
- Dual 10/100/1000 Ethernet with Redundant Path Technology
Telecommunication equipment engineers and project managers require a cost effective serial-to-Ethernet solution to monitor and manage network equipment which is often installed in lights-out data centres, distant POP sites, and co-location facilities. IOLAN SDSC LDC Console Servers are certified to meet harsh telecommunications environments addressed by the Telcordia Network Equipment Building Standard (NEBS) Level 3 standard.
IOLAN SDSC LDC Console Servers are ideal for:
- Telecommunications engineers and project managers requiring a high performance serial to ethernet solution for access to serial based console ports on network equipment
- Telecommunication facilities that require an out-of-the-band management solution with advanced security features and NEBS Level 3 certification
Why IOLAN SDSC LDC Console Servers are the preferred choice:
- NEBS Level 3 certified by an industry approved testing house
- Supports a wide voltage range of 18 – 72vDC required in 48vDC telecommunications facilities
- Dual feed voltage input for fault tolerant access to DC power
-
Advanced Security features:
- TACACS+, RADIUS for centralized authentication, authorization and accounting
- Two factor strong authentication such as RSA’s SecureID
- FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
- HTTPS, SSL/TLS, SSH ( AES, 3DES ) session encryption
- Keystroke and data logging
- Cisco RJ45 serial port pinout design enables simple connection to Cisco/SUN console ports using common “rolled” CAT5 cabling
- High performance 400 Mhz, 750 MIPS, 32 bit processor with integrated encryption processor for the best throughput in the market.
- EasyPort Web – Access equipment serial console ports by using your Internet browser
- Java-free browser access to remote serial console ports via Telnet and SSH
- Lifetime warranty – best investment protection available
Software Features - IOLAN SDSC LDC Console Server
| Serial Port Access | |
|---|---|
| Connect directly using Telnet / SSH by port and IP address | |
| Connect with EasyPort menu by Telnet / SSH | |
| Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu | |
| Java-free browser access to remote serial console ports via Telnet and SSH | |
| Ports can be assigned a specific IP address ( aliasing ) | |
| Multisession capability enables multiple users to access ports simultaneously | |
| Multihost access enables multiple hosts/servers to share serial ports | |
| Accessibility | |
| In-band ( Ethernet ) and out-of-band ( dial-up modem ) support | |
| Dynamic DNS enables users to find a console server from anywhere on the Internet | |
| Domain name control through DHCP option 81 | |
| IPV6 and IPV4 addressing support | |
| Availability | |
| Primary/Backup host functionality enables automatic connections to alternate host(s) | |
| Security | |
| SSH v1 and v2 | |
| PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0 | |
| SSL Server and SSL client mode capability | |
| SSL Peer authentication | |
| IPSec VPN : NAT Traversal, ESP authentication protocol | |
| SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305 | |
| SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384 | |
| Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2) | |
| Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96 | |
| Key exchange: RSA, EDH-RSA, EDH-DSS, ADH | |
| X.509 Certificate verification: RSA, DSA | |
| Certificate authority (CA) list | |
| Local database | |
| RADIUS Authentication, Authorization and Accounting | |
| TACACS+ Authentication, Authorization and Accounting | |
| LDAP, NIS, Kerberos Authentication | |
| RSA SecureID-agent or via RADIUS Authentication | |
| SNMP v3 Authentication and Encryption support | |
| IP Address filtering | |
| Disable unused daemons | |
| Active Directory via LDAP | |
| Terminal Server | |
| Telnet | |
| SSH v1 and v2 | |
| Rlogin | |
| Auto session login | |
| LPD, RCP printer | |
| MOTD - Message of the day | |
| Serial machine to Ethernet | |
| Tunnel raw serial data across Ethernet - clear or encrypted | |
| Raw serial data over TCP/IP | |
| Raw serial data over UDP | |
| Serial data control of packetized data | |
| Share serial ports with multiple hosts/servers | |
| Virtual modem simulates a modem connection - assign IP address by AT phone number | |
| Virtual modem data can be sent over the Ethernet link with or without SSL encryption | |
| TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here | |
| TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity | |
| RFC 2217 standard for transport of serial data and RS232 control signals | |
| Customizable or fixed serial baud rates | |
| Plug-ins allow customer or Perle provided plug-ins for special applications | |
| Software Development Kit ( SDK ) available | |
| Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101 | |
| ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP | |
| Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port | |
| Console Management | |
| Sun / Oracle Solaris Break Safe | |
| Local port buffer viewing - 256K bytes per port | |
| External port buffering via NFS, encrypted NFS and Syslog | |
| Event notification | |
| Manage AC power of external equipment using Perle RPS power management products | |
| Clustering - central console server enables access ports across multiple console servers | |
| Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console | |
| Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear | |
| Remote Access | |
| Dial, direct serial | PPP, PAP/CHAP, SLIP |
| HTTP tunneling enables firewall-safe access to remote serial devices across the internet | |
| Automatic DNS Update | Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details |
| IPSEC VPN client/servers | Microsoft L2TP/IPSEC VPN client ( native to Windows XP) |
| Microsoft IPSEC VPN Client ( native to Windows Vista ) | |
| Cisco routers with IPSEC VPN feature set | |
| Perle IOLAN SDS/STS and SCS models | |
| OA&M ( Operations, Administration and Management ) | |
| SNMP V3 - read and write, Perle MIB | |
| Syslog | |
| Perle Device Manager - Windows based utility for large scale deployments | |
| Configurable default configuration | |
| Installation Wizard | |
| Set a Personalized Factory Default for your IOLANs | |
| Protocols | |
| IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP | |
Hardware Specifications - IOLAN SDSC LDC Console Servers
| SDS8C LDC | SDS16C LDC | SDS32C LDC | |
|---|---|---|---|
| Processor | MPC8349E, 400 Mhz, 750 MIPS | ||
| Memory | |||
| RAM MB | 64 | 64 | 64 |
| Flash MB | 16 | 16 | 16 |
| Interface Ports | |||
| Number of Serial Ports | 8 | 16 | 32 |
| Serial Port Interface | Software selectable RS232 / RS485 / RS422 DTE on RJ45 - RS485: full and half duplex | ||
| Sun / Solaris | Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime | ||
| Serial Port Speeds | 50bps to 230Kbps with customizable baud rate support | ||
| Data Bits | Configurable for 5,6,7 or 8-bit protocol support Use TruePort to transparently pass 9-bit serial data |
||
| Parity | Odd, Even, Mark, Space, None | ||
| Flow Control | Hardware, Software, Both, None | ||
| Local Console Port | RS232 on RJ45 with DB9 adapter (provided ) | ||
| Network | Dual 10/100/1000-base TX Ethernet RJ45 | ||
| Software selectable Ethernet speed 10/100/1000, Auto | |||
| Software selectable Half/Full/Auto duplex | |||
| Failsafe Alarm Relay | 3A@24v DC. Normally open contacts closed by IOLAN when active and opened upon alarm condition or power failure | ||
| Power | |||
| Dual Power Supply | 2 x Pluggable Terminal Blocks with screw terminals accommodating 28 - 12 AWG wire sizes | ||
| Nominal Input Voltage | 24v DC / 48v DC | ||
| Input Voltage Range | 18 - 72v DC | ||
| Current Consumption @ 18v DC (Amps) | 0.4 | 0.55 | 0.85 |
| Current Consumption @ 24v DC (Amps) | 0.3 | 0.4 | 0.65 |
| Current Consumption @ 48v DC (Amps) | 0.2 | 0.25 | 0.35 |
| Current Consumption @ 72v DC (Amps) | 0.15 | 0.18 | 0.25 |
| Typical Power Consumption (Watts) | 11 | 13 | 18 |
| Chassis Ground | Grounding screw for a #10 ring terminal | ||
| Indicators | |||
| LEDs | Power | ||
| System Ready | |||
| Network Link activity | |||
| Serial: Transmit and Receive data per port | |||
| Environmental Specifications | |||
| Heat Output (BTU/HR) | 37.6 | 44.4 | 61.5 |
| MTBF(Hours) | 126,302 | 105,495 | 82,402 |
Calculation model based on MIL-HDBK-217-FN2 @ 30 °C |
|||
| Operating Temperature | -40C ambient for 16 hours and +70C ambient for 16 hours without use of fans | ||
| Storage Temperature | -40C to 85C, -40F to 185F | ||
| Humidity | 5 to 95% (non condensing) for both storage and operation. | ||
| Case | SECC Zinc plated sheet metal (1 mm) | ||
| Ingress Protection Rating | IP30 | ||
| Mounting | 1U - 19" rack, front and rear mounting hardware included. DIN Rail mounting kit optional |
||
| Product Weight and Dimensions | |||
| Weight | 3.16 kg | 3.18 kg | 3.36 kg |
| Dimensions | 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in) | ||
| Packaging | |||
| Shipping Weight | 3.96 kg | 3.98 kg | 4.16 kg |
| Shipping Dimensions | 59 x 36 x 9 (cm), 23 x 14 x 3.5 (in) | ||
| Regulatory Approvals | |||
| Network Equipment Building Systems (NEBS) | SR-3580 NEBS Level 3 | ||
| GR-1089-CORE : NEBS EMI and Safety | |||
| GR-1089-CORE per Verizon VZ.TPR.9205 and ATT-TP-76200 | |||
| GR-63-CORE: NEBS Physical Protection | |||
| GR-63-CORE / ANSI T1.319 per Verizon VZ.TPR.9305 and ATT-TP-76200 | |||
| Emissions | Power Line conducted: IEC 61850-3 Sec 5.8 | ||
| CISPR 32:2015/EN 55032:2015 (Class A) | |||
| EN55011 (CISPR11) | |||
| Telecom Line conducted: IEC 61000-6-4 | |||
| Radiated: IEC 61850-3 Sec 5.8 | |||
| CISPR 24:2010/EN 55024:2010 | |||
| EN61000-3-2 : 2010 Limits for Harmonic Current Emissions | |||
| EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker | |||
| EMC Interface Immunity | IEC 61850-3 (substations) IEEE 1613 (substations) (C37.90.x) Applies to all ports, signal and power connections |
||
| ESD: IEC61000-4-2, 8Kv Contact / 15Kv Air | |||
| Radiated RFI: IEC61000-4-3, 20 V/m (80M-1G) | |||
| Fast Transients / Burst: IEC61000-4-4, 4Kv Mains , I/O | |||
| Surge : IEC61000-4-5 4Kv AC line to Gnd, 2Kv AC Line to Line, 2Kv DC line to Gnd, 1 Kv DC Line to Line, RS232 = balanced, ethernet = unbalanced |
|||
| Conducted RF: IEC61000-4-6, 10 Vrms | |||
| Magnetic Field: IEC61000-4-8, 100 A/m, 1000 A/m (1 sec) | |||
| Dips and Interrupts: IEC61000-4-11, Criteria A/B/C | |||
| Oscillatory: EN61000-4-12, 2.5Kv common and differential mode | |||
| Low Frequency conducted: EN61000-4-16, 30V 60s, 300V 1s,15Hz-150KHz @ level 3 | |||
| Safety | UL/EN/IEC 62368-1 CAN/CSA C22.2 No. 62368-1 IEC 60950-1(ed 2); am1, am2 and EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
||
| NEBS GR-1089-CORE ISSUE 4 (Level 3, Type 2 and Type 4) | |||
| Other | Reach, RoHS and WEEE Compliant Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012 |
||
| CCATS - G168387 | |||
| ECCN - 5A992 | |||
| HTSUS Number: 8517.62.0020 | |||
| Perle Lifetime Warranty | |||
| IOLAN RJ45 Serial Connector Pinout | ||||||
|---|---|---|---|---|---|---|
|
Pinout | Direction | EIA-232 | EIA-422 | EIA-485 Full Duplex | EIA-485 Half Duplex |
| 1 | out | RTS | TxD+ | TxD+ | DATA+ | |
| 2 | out | DTR | ||||
| 3 | out | TxD | TxD- | TxD- | DATA- | |
| 4 | GND | GND | GND | GND | ||
| 5 | GND | GND | GND | GND | ||
| 6 | in | RxD | RxD+ | RxD+ | ||
| 7 | in | DSR | ||||
| 8 | in | CTS | RxD- | RxD- | ||
| (A rolled CAT5 cable will automatically perform DTE to DCE crossover) | ||||||
Optional Perle adapters for use with straight thru CAT5 cabling |
||||||
RJ45 Socket| TCP |
|---|
Using RAW TCP Sockets A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from thePerle IOLAN serial-Ethernet adapter.  |
| UDP |
Using Raw UDP Sockets For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.  |
| Console Server |
Console Management For access to remote console ports on routers, switches,etc, Perle IOLAN’s enable administrators secure access to these RS232 ports via inband Reverse Telnet / SSH or out of band with dial-up modems. Perle IOLAN models with integrated modems are available.  |
| COM/TTY |
Connect Serial-based Applications with a COM/TTY Port Driver Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort.  |
| Tunneling |
Serial Tunneling between two Serial Devices Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling (typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client).  |
| Virtual Modem |
Virtual Modem Enables the serial-Ethernet adapter to simulate a modem connection. When connected to the IOLAN and initiates a modem connection, the IOLAN starts up a TCP connection to another IOLAN serial-Ethernet adapter configured with a Virtual Modem serial port or to a host running a TCP application.  |
