IOLAN SCS Console Server

In-Band and Out-of-Band IT Infrastructure Management

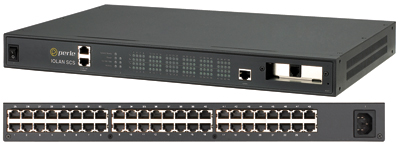

IOLAN SCSC48 Console Server

IOLAN SCSC48 Console Server

IOLAN SCSC48 Console Server
  • 8, 16, 32 or 48 RS-232 serial port interfaces
  • Dual 10/100/1000 Ethernet support with Redundant Path Technology
  • PCI Slot for integrated out-of-band access
  • Advanced AAA security and encryption to meet all data center compliance policies
Get a quote
Demo Now!
  • Overview
  • Features
  • Hardware AC
  • Diagrams
  • Documentation
  • Ordering Details

IOLAN SCS Console Servers have a truly fault tolerant design to minimize downtime and provide reliable, secure remote device management. With built-in dual Ethernet and Redundant Path technology the IOLAN SCS provides assured serial console port access, offering the most reliable solution for managing data center and remote branch equipment… all at the best price performance.

Why IOLAN SCS Console Servers are the preferred choice:

  • High performance 400 MHz, 750 MIPS, 32 bit processor with integrated hardware encryption processor for the best throughput
  • Clustering – Provides a single view of all out of band console ports. Ideal for large data centers
  • Intelligent Power cycling of equipment with Perle Remote Power Switches
  • Next Generation IP support (IPv6) for investment protection and network compatibility
  • Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
  • EasyPort Web – Access equipment serial console ports by using your java-enabled Internet browser
  • FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
  • Dynamic DNS – Easy console management access from anywhere on the Internet
  • Java-free browser access to remote serial console ports via Telnet and SSH
  • Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
  • Lifetime warranty – best investment protection available
IOLAN SCS Console Server - Remote Console Management

IOLAN SCS Console Server - Remote Console Management

IOLAN SCS Console Server - Remote Console Management

Secure Serial Console Management

IOLAN SCS Console Servers enable administrators to securely access remote serial console ports on equipment such as PBX, servers, routers, network storage equipment and security appliances through an IP network. Data management information is protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (SSL). Access by authorized users is assured via authentication schemes such as RADIUS, TACACS+, LDAP, Kerberos, NIS and RSA Security’s SecurID tokens.

By using encryption technologies, an IOLAN Console Server protects sensitive and confidential data before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all of the major encryption ciphers such as AES, 3DES, RC4, RC2 and CAST128 are fully supported.

Recognized as the most secure method for communicating to remote private networks over the Internet, the IPSec standard provides robust authentication and encryption of IP packets at the network layer of the OSI model. As a standard it is ideal for multi-vendor interoperation within a network, providing flexibility and the ability to match the right solution for a particular application.

High Availability Access

The IOLAN SCS has built-in fault tolerant capabilities to ensure secure and reliable access for managing important mission critical equipment. Dual Ethernet interfaces on the IOLAN SCS provide redundant network paths while dual AC power supply models ensure that console management is available even if the primary AC power source fails. For remote administrators that require access from home, on the road or in the event of a total network failure, an optional IOLAN V.92 modem card delivers a solid, integrated solution with direct phone line attachment via its onboard RJ11 jack.

Protection against electrostatic discharges and power surges is provided with robust 15Kv ESD protection circuitry on each serial port.

Advanced IP Technology

With support for Next Generation IP (IPv6) the IOLAN range provides organizations with investment protection to meet this rapidly growing standard.

Demand for IPv6, which is compatible with IPv4 addressing schemes, is driven by the need for more IP address. With the implementation and rollout of advanced cellular networks, a robust method is needed to handle the huge influx of new IP addressable devices on the Internet. In fact, the US Department of Defense has mandated that all equipment purchased be IPv6 compatible. In addition, all major Operating Systems such as Windows, Linux, Unix and Solaris, as well as routers, have built-in support for IPv6.

It is therefore important for end users and integrators to select networking equipment that incorporates the IPv6 standard. The IOLAN line with support for IPv6 already built in, is the best choice in serial to Ethernet technology.

Lifetime Warranty

All Perle IOLAN SCS models are backed by the best service and support in the industry including Perle’s unique lifetime warranty. Since 1976 Perle has been providing its customers with networking products that have the highest levels of performance, flexibility and quality.

Software Features - IOLAN SCSC Console Servers

Serial Port Access
Connect directly using Telnet / SSH by port and IP address
Connect with EasyPort menu by Telnet / SSH
Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu
Java-free browser access to remote serial console ports via Telnet and SSH
Ports can be assigned a specific IP address ( aliasing )
Multisession capability enables multiple users to access ports simultaneously
Multihost access enables multiple hosts/servers to share serial ports
Accessibility
In-band ( Ethernet ) and out-of-band ( dial-up modem ) support
Dynamic DNS enables users to find a console server from anywhere on the Internet
Domain name control through DHCP option 81
IPV6 and IPV4 addressing support
Availability
Primary/Backup host functionality enables automatic connections to alternate host(s)
Security
SSH v1 and v2
PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
SSL Server and SSL client mode capability
SSL Peer authentication
IPSec VPN : NAT Traversal, ESP authentication protocol
SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
X.509 Certificate verification: RSA, DSA
Certificate authority (CA) list
Local database
RADIUS Authentication, Authorization and Accounting
TACACS+ Authentication, Authorization and Accounting
LDAP, NIS, Kerberos Authentication
RSA SecureID-agent or via RADIUS Authentication
SNMP v3 Authentication and Encryption support
IP Address filtering
Disable unused daemons
Active Directory via LDAP
Terminal Server
Telnet
SSH v1 and v2
Rlogin
Auto session login
LPD, RCP printer
MOTD - Message of the day
Serial machine to Ethernet
Tunnel raw serial data across Ethernet - clear or encrypted
Raw serial data over TCP/IP
Raw serial data over UDP
Serial data control of packetized data
Share serial ports with multiple hosts/servers
Virtual modem simulates a modem connection - assign IP address by AT phone number
Virtual modem data can be sent over the Ethernet link with or without SSL encryption
TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO HP UX, NCR UNIX and AIX. Perle supports the most comprehensive driver set in the industry. For a complete list of all the latest drivers click here
TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity
RFC 2217 standard for transport of serial data and RS232 control signals
Customizable or fixed serial baud rates
Plug-ins allow customer or Perle provided plug-ins for special applications
Software Development Kit ( SDK ) available
Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port
Console Management
Sun / Oracle Solaris Break Safe
Local port buffer viewing - 256K bytes per port
External port buffering via NFS, encrypted NFS and Syslog
Event notification
Manage AC power of external equipment using Perle RPS power management products
Clustering - central console server enables access ports across multiple console servers
Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
Remote Access
Dial, direct serial PPP, PAP/CHAP, SLIP
  HTTP tunneling enables firewall-safe access to remote serial devices across the internet
Automatic DNS Update Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details
IPSEC VPN client/servers Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
Microsoft IPSEC VPN Client ( native to Windows Vista )
Cisco routers with IPSEC VPN feature set
Perle IOLAN SDS/STS and SCS models
OA&M ( Operations, Administration and Management )
SNMP V3 - read and write, Perle MIB
Syslog
Perle Device Manager - Windows based utility for large scale deployments
Configurable default configuration
Installation Wizard
Set a Personalized Factory Default for your IOLANs
Protocols
IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP

Hardware Specifications - IOLAN SCSC Console Server AC Power Models

  SCS8C SCS8C DAC SCS16C & SCS16C-DSFP SCS16C DAC & SCS16C-DSFP DAC SCS32C SCS32C DAC SCS48C SCS48C DAC
Processor MPC8349E, 400 Mhz, 750 MIPS
Memory
RAM MB 64 64 64 64 128 128 128 128
Flash MB 16 16 16 16 16 16 16 16
Interface Ports
Number of Serial Ports 8 8 16 16 32 32 48 48
Serial Port Interface RS232 DTE on RJ45
Sun / Solaris Sun / Oracle ‘Solaris' Safe - no "break signal" sent during
power cycle causing costly server re-boots or downtime
Serial Port Speeds 50bps to 230Kbps with customizable baud rate support
Data Bits Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data
Parity Odd, Even, Mark, Space, None
Flow Control Hardware, Software, Both, None
Serial Port Protection 15Kv Electrostatic Discharge Protection (ESD)
Local Console Port RS232 on RJ45 with DB9 adapter (provided)
Network Dual 10/100/1000 Ethernet RJ45 Dual 10/100/1000 Ethernet RJ45 Dual SFP Slots for Copper or Fiber Network Connection Dual SFP Slots for Copper or Fiber Network Connection Dual 10/100/1000 Ethernet RJ45 Dual 10/100/1000 Ethernet RJ45 Dual 10/100/1000 Ethernet RJ45 Dual 10/100/1000 Ethernet RJ45
Software selectable Ethernet speed 10/100/1000, Auto
Software selectable Half/Full/Auto duplex
Ethernet Isolation 1.5Kv Magnetic Isolation
Fiber Support Dual SFP slots are available on the SCS16C-DSFP model. For all other models, Perle supports 3rd party Gigabit Fiber Cards via the standard PCI Interface Slot. Alternatively, connect a Perle Standalone Media Converter to the IOLAN SCS Ethernet port for Fiber to Ethernet conversion.
Power SCS8C SCS8C DAC SCS16C & SCS16C-DSFP SCS16C DAC & SCS16C-DSFP DAC SCS32C SCS32C DAC SCS48C SCS48C DAC
Redundant Power Dual power supply Dual power supply Dual power supply Dual power supply
Power Supply
USA models IEC320-C13 to NEMA 5-15P line cord
UK models IEC320-C13 to BS1363 line cord
EU models IEC320-C13 to CEE 7/7 Schuko
South Africa models IEC320-C13 to BS546 line cord
Australia models IEC320-C13 to AS3112 line cord
Nominal Input Voltage 110/230v AC
Input Voltage Range 100-240v AC
AC Input Frequency 47-63Hz
Current Consumption @ 100v (Amps) 0.17 0.20 0.18 0.21 0.19 0.22 0.2 0.23
Current Consumption @ 240v (Amps) 0.07 0.08 0.08 0.09 0.08 0.09 0.08 0.09
Typical Power Consumption (Watts) 17 19.5 18 20.5 19 21.5 20 22.5
Power Line Protection Fast transients: 1 KV (EN61000-4-4 Criteria B)
Surge: 2KV (EN61000-4-5 common mode), 1KV (EN61000-4-5 differential
and common modes)
Indicators
LEDs Power
System Ready
Network Link activity
Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output
(BTU/HR)
58 67 62 70 65 74 69 77
MTBF (Hours)* 130539 99587 122926 95094 111053 87829 115980 90884

Calculation model based on MIL-HDBK-217-FN2 @ 30 °C

Operating Temperature 0C to 55C, 32F to 131F
Storage Temperature -40C to 85C, -40F to 185F
Humidity 5 to 95% (non condensing) for both storage and operation.
Case SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating IP30
Mounting 1U - 19" rack, front and rear mounting hardware included
Product Weight and Dimensions
Weight 3.0 kg 3.2 kg 3.1 kg 3.4 kg 3.2 kg 3.5 kg 3.5 kg 3.6 kg
Dimensions 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)
Packaging
Shipping Dimensions 59 x 36 x 9cm
Shipping Weight 4.0 kg 4.2 kg 4.2 kg 4.4 kg 4.4 kg 4.8 kg 4.5 kg 4.9 kg
Regulatory Approvals
Emissions FCC Part 15, Subpart B, Class A
CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
ICES-003, Issue 4, February 2004 (Canada)
CISPR 32:2015/EN 55032:2015 (Class A)
EN55011 (CISPR11)
EN61000-3-2 : 2010, Limits for Harmonic Current Emissions
EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker
Immunity CISPR 24:2010/EN 55024:2010
EN61000-4-2: Electrostatic Discharge
EN61000-4-3: RF Electromagnetic Field Modulated
EN61000-4-4: Fast Transients
EN61000-4-5: Surge
EN61000-4-6: RF Continuous Conducted
EN61000-4-8: Power-Frequency Magnetic Field
EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety UL/EN/IEC 62368-1
CAN/CSA C22.2 No. 62368-1
IEC 60950-1(ed 2); am1, am2 and
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1,
First Edition April 1st 2003 (Recognized Component)
Other Reach, RoHS and WEEE Compliant
Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012
CCATS - G168387
ECCN - 5A992
HTSUS Number: 8517.62.0020
Perle Limited Lifetime warranty

IOLAN SCSC RJ45 Serial Connector Pinout

RJ45 SocketRJ45 Socket

Pinout Direction EIA-232
1 out RTS
2 out DTR
3 out TxD
4   GND
5   GND
6 in RxD
7 in DSR/DCD
8 in CTS

Optional Perle adapters for use with straight thru CAT5 cabling


Part Numbers for existing customers who want this product with traditional IOLAN pinouts

TCP

Using RAW TCP Sockets

A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from thePerle IOLAN serial-Ethernet adapter.

diagram-tcp
UDP

Using Raw UDP Sockets

For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.

diagram-udp
Console Server

Console Management

For access to remote console ports on routers, switches,etc, Perle IOLAN’s enable administrators secure access to these RS232 ports via inband Reverse Telnet / SSH or out of band with dial-up modems. Perle IOLAN models with integrated modems are available.

diagram console
COM/TTY

Connect Serial-based Applications with a COM/TTY Port Driver

Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort.

diagram com tty
Tunneling

Serial Tunneling between two Serial Devices

Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling (typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client).

diagram tunneling
Virtual Modem

Virtual Modem

Enables the serial-Ethernet adapter to simulate a modem connection. When connected to the IOLAN and initiates a modem connection, the IOLAN starts up a TCP connection to another IOLAN serial-Ethernet adapter configured with a Virtual Modem serial port or to a host running a TCP application.

diagram modem
Top
  • Products
  • Applications
  • About Perle
  • Contact Us
  • How to Buy
  • Technical Support
  • Site Map
  • Legal Information
  • Privacy & Cookie Policy

Products by Perle

specialix Chase Research
© 1996 - Perle. All Rights Reserved.
×

Send us an Email

Have a Question?

We can provide more information about our products or arrange for a price quotation.


email-iconSend an Email
contactus-iconSend an Email callus-iconCall Us
