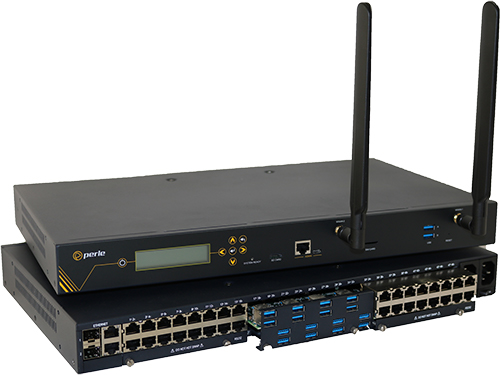

IOLAN SCG L Secure Console Server with integrated Cellular Access
In-Band and Out-of-Band IT Infrastructure Management
- 18, 34 or 50 Console Management Ports
- Modular design supports RS232 RJ45 and USB 3.0 Interfaces
- High-Speed 4G LTE with fallback networks - HSPA+, UMTS, EDGE and GPRS/GSM
- Dual Network Connection with 10/100/1000Base-T Copper and 100/1000Base-X Fiber SFP Ports
- Advanced AAA security and SSH/SSL encryption to meet all data center compliance policies
- Dual AC Power for Fault-tolerant uptime
The Perle IOLAN SCG L Console Servers provide data center managers with secure remote console management of any device with an RS232 RJ45 or USB console port. With an expandable modular hardware platform, advanced security features, and built-in redundancy features, your IT professionals and network operations center (NOC) personnel will have everything they needed to easily perform secure remote data center management and out-of-band management of IT assets from anywhere in the world. The unique design also provides users with a flexible, cost-effective solution to transmit data from mission-critical equipment over 4G LTE Cellular networks.
Modular Hardware Platform enables Console Management for all IT assets
The modular IOLAN SCG L Console Server supports both RS232 RJ45 and USB connectivity to console ports on equipment such as Cisco routers, switches, firewalls, servers (Solaris, Windows, Unix and Linux) PBXs, network storage equipment and security appliances through through a LAN or 4G LTE Cellular network. For decades the highly reliably RS232 RJ45 port has been the standard for Console Admin port access. Now, IT equipment manufacturers like Cisco, Juniper, Dell, HPE, Huawei and others are delivering devices with USB Console Admin Ports. The modular design of the IOLAN SCG L provides support for both types of admin ports in one Console Management solution. The interface modules allow the user to swap, upgrade and scale to any “mix-and-match” combination of 16-port USB 3.0 or RS-232 RJ45 interface module cards. You can purchase the IOLAN SCG L Console Server fully populated or partially populated so that you can swap and add modules as your needs grow or change.
The Perle IOLAN SCG is the only industry solution that can support up to 50 high-density USB 3.0 ports that are compatible with all manufacturers’ USB solutions.
The RS232 RJ45 ports are software configurable to use straight thru or rolled cables to connect your Cisco equipment. In addition, a DCD pin can be configured for 3rd party devices that need this extra signal. The means the Perle IOLAN SCG supports more serial devices than any other Console Server on the market.
Advanced Network Security Features, Authentication and Data Encryption
IT administrators are required to ensure network data transmissions, and all access to remote console admin ports on IT equipment is secure. When using IOLAN SCG Console Servers, data management information is protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (SSL). Support for authentication schemes such as RADIUS, TACACS+, LDAP, Kerberos, NIS, and RSA Security’s SecurID tokens ensures access to equipment and data is limited to authorized users.
By using encryption technologies, an IOLAN SCG Console Server protects sensitive and confidential data before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all the major encryption ciphers such as AES, 3DES, RC4, RC2, and CAST128 are fully supported.
Recognized as the most secure method for communicating to remote private networks over the Internet, the IPSec standard provides robust authentication and encryption of IP packets at the network layer of the OSI model. As a standard it is ideal for multi-vendor interoperation within a network, providing flexibility and the ability to match the right solution for a particular application.
Redundancy features for fault tolerant network access and uptime
Every IOLAN SCG L Console Server comes with built-in high-speed 4G LTE with HSPA+, UMTS, EDGE and GPRS/GSM fallback networks to protect your data center and branch office out-of-band management infrastructure against wired LAN failure. It can also be used to transmit serial data or establish a direct serial to serial peer connection, over cellular networks. This is ideal when devices are located where hardwired Ethernet connections are not available but cellular networks, with their affordable data packages, are accessible
In addition, the IOLAN SCG has redundant copper and fiber Ethernet network access support with bonding and IP filtering. Any dual combination of the two 10/100/1000Base-T Copper Ports and two 100/1000Base-X SFP Fiber Ports can be used to meet your unique network access requirements. This design provides users with a flexible, cost-effective solution to transmit data from mission critical equipment over Copper or Fiber based Ethernet networks. When connecting to a fiber network, the pluggable SFP ports allow for flexible network configurations using SFP Optical Transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs. This unique fault tolerant design, with Redundant Path technology, assures availability to Console Management ports through Active Standby or Dual Network Access modes.
Protection against electrostatic discharges and power surges is provided with robust 15Kv ESD protection circuitry on each console port.
In addition, Dual AC Power ensures your IOLAN stays up and running should the primary power source fail.
Easy Set-up, Configuration and Front Panel Display and Keyboard
The IOLAN SCG L is incredibly easy to get up and running on the network. The Front Panel Display and Keyboard allows a user to assign an IP address directly through the display without a direct PC connection. The rest of the unit can then be configured over the network using a variety of configurator options including, Perle Easy Config Wizard, Perle Device Manager, WebManager, CLI, etc.
The Front Panel Display is also a convenient way to monitor and trouble-shoot RS232, USB and Ethernet port activity.
For large scale roll-outs, the Micro SD Card slot can be used to back-up and restore configuration files as well as load new firmware. Perle is committed to eliminating configuration hassles for all IOLAN's on your IP network.
Flexible and Reliable Serial to Ethernet Connections
An IOLAN SCG Console Server is ideal for connecting serial based COM port, UDP or TCP socket based applications to remote devices. Perle’s TruePort re-director provides fixed TTY or COM ports to serial based applications enabling communication with remote devices connected to Perle IOLAN's either in encrypted or clear text modes.
TrueSerial® packet technology delivers the most authentic serial connections across Ethernet for serial protocol integrity.
You can also tunnel serial data between devices across an IP network.
By choosing a Perle IOLAN SCG Console Server you can rest assured that virtually any device with a serial COM port will operate in conjunction with your desired application exactly as it did when you had it directly connected. In the unlikely event that the Perle IOLAN Console Server does not enable this out of the box, Perle will make it work with customer installable "Device Plug-ins".
Advanced IP Technology
With support for IPv6, the IOLAN SCG provides organizations with investment protection to meet this rapidly growing standard.
Demand for IPv6, which is compatible with IPv4 addressing schemes, is driven by the need for more IP address. With the implementation and rollout of advanced cellular networks, a robust method is needed to handle the huge influx of new IP addressable devices on the Internet. In fact, the US Department of Defense has mandated that all equipment purchased be IPv6 compatible. In addition, all major Operating Systems such as Windows, Linux, Unix, and Solaris, as well as routers, have built-in support for IPv6.
It is therefore important for end users and integrators to select networking equipment that incorporates the IPv6 standard. The IOLAN line with support for IPv6 already built in is the best choice in serial to Ethernet technology.
More reasons that make the IOLAN SCSG Console Servers the preferred choice:
- Cellular data speeds up to 100Mbps
- Direct serial to serial peer connection over cellular data networks
- Remote equipment console management over cellular data networks
- FIPS 140-2 –Cryptographic modules meet US Government NIST compliance.
- Clustering – Provides a single view of all out of band console ports. Ideal for large data centers.
- Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
- EasyPort Web – Access equipment serial console ports by using your Java-enabled Internet browser.
- Java-free browser access to remote serial console ports via Telnet and SSH.
- Dynamic DNS – Easy console management access from anywhere on the Internet.
- Intelligent Power cycling of equipment with Perle Remote Power Switches.
- Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
All Perle IOLAN SCG models are backed by the best service and support in the industry including Perle’s unique lifetime warranty. Since 1976 Perle has been providing its customers with networking products that have the highest levels of performance, flexibility, and quality. With the Perle IOLAN SCG deploying and upgrading new services and equipment while minimizing capital expenditures, is easy.
|Serial Port Access|
|Connect directly using Telnet / SSH by port and IP address|
|Connect with EasyPort menu by Telnet / SSH|
|Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu|
|Java-free browser access to remote serial console ports via Telnet and SSH|
|Ports can be assigned a specific IP address ( aliasing )|
|Multisession capability enables multiple users to access ports simultaneously|
|Multihost access enables multiple hosts/servers to share serial ports|
|Serial to 4G LTE cellular data networks with fallback networks - HSPA+, UMTS, EDGE and GPRS/GSM|
Serial to 10/100/1000Base-T Ethernet
|In-band and out-of-band Ethernet via RJ45 copper (10/100/1000 Base-T) and SFP fiber (100/1000Base-X)|
|In-band and out-of-band via integrated LTE, HSPA+, UMTS, EDGE and GPRS/GSM support|
|Easy setup with Front Panel Display and Keyboard|
|Dynamic DNS enables users to find a console server from anywhere on the Internet|
|Domain name control through DHCP option 81|
|IPV6 and IPV4 addressing support|
|Primary/Backup host functionality enables automatic connections to alternate host(s)|
|SSH v1 and v2|
|PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0|
|SSL Server and SSL client mode capability|
|SSL Peer authentication|
|IPSec VPN : NAT Traversal, ESP authentication protocol|
|SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305|
|SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384|
|Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)|
|Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96|
|Key exchange: RSA, EDH-RSA, EDH-DSS, ADH|
|X.509 Certificate verification: RSA, DSA|
|Certificate authority (CA) list|
|RADIUS Authentication, Authorization and Accounting|
|TACACS+ Authentication, Authorization and Accounting|
|LDAP, NIS, Kerberos Authentication|
|RSA SecureID-agent or via RADIUS Authentication|
|SNMP v3 Authentication and Encryption support|
|IP Address filtering|
|Disable unused daemons|
|Active Directory via LDAP|
|SSH v1 and v2|
|Auto session login|
|LPD, RCP printer|
|MOTD - Message of the day|
|Serial machine to Ethernet|
|Tunnel raw serial data across Ethernet - clear or encrypted|
|Raw serial data over TCP/IP|
|Raw serial data over UDP|
|Serial data control of packetized data|
|Share serial ports with multiple hosts/servers|
|Virtual modem simulates a modem connection - assign IP address by AT phone number|
|Virtual modem data can be sent over the Ethernet link with or without SSL encryption|
|TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO HP UX, NCR UNIX and AIX. Perle supports the most comprehensive driver set in the industry. For a complete list of all the latest drivers click here|
|TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity|
|RFC 2217 standard for transport of serial data and RS232 control signals|
|Customizable or fixed serial baud rates|
|Plug-ins allow customer or Perle provided plug-ins for special applications|
|Software Development Kit ( SDK ) available|
|Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101|
|ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP|
|Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port|
|Sun / Oracle Solaris Break Safe|
|Local port buffer viewing - 256K bytes per port|
|External port buffering via NFS, encrypted NFS and Syslog|
|Manage AC power of external equipment using Perle RPS power management products|
|Clustering - central console server enables access ports across multiple console servers|
|Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console|
|Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear|
|Dial, direct serial||PPP, PAP/CHAP, SLIP|
|HTTP tunneling enables firewall-safe access to remote serial devices across the internet|
|Automatic DNS Update||Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details|
|IPSEC VPN client/servers||Microsoft L2TP/IPSEC VPN client ( native to Windows XP)|
|Microsoft IPSEC VPN Client ( native to Windows Vista )|
|Cisco routers with IPSEC VPN feature set|
|Perle IOLAN SDS, SDG, STS, STG, SCS and SCG models|
|OA&M ( Operations, Administration and Management )|
|SNMP V3 - read and write, Perle MIB|
|Perle Device Manager - Windows based utility for large scale deployments|
|Configurable default configuration|
|Set a Personalized Factory Default for your IOLANs|
|IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP|
Hardware Specifications - IOLAN SCG L Secure Console Server
|Processor||1750 MIPS, 500 MHz core 32 bit ARM processor, with integrated hardware encryption processor|
|Integrated Device Management Ports||2 x USB 3.0|
|Modular Device Management Ports||IOLAN SCG18:
| IOLAN SCG50:
|Each chassis can be expanded or modified with an optional 16-port Interface card with either RS232 RJ45 ports or USB 3.0 ports|
|Sun / Solaris||Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime|
|Serial Port Speeds||50bps to 230Kbps with customizable baud rate support|
|Data Bits||Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data
|Parity||Odd, Even, Mark, Space, None|
|Flow Control||Hardware, Software, Both, None|
|Serial Port Protection||15Kv Electrostatic Discharge Protection (ESD)|
|Local Console Ports|| 1 x RS232 RJ45
1 x Micro USB with DB9 adapter
|Network||2 x 10/100/1000Base-T RJ45 Copper
2 x 100/1000Base-X Fiber SFP Ports
Note: Any combination of two network ports can be used.
Software selectable Ethernet speed 10/100/1000, Auto
Software selectable Half/Full/Auto duplex
|Micro SD Card slot||Yes|
|Ethernet Isolation||1.5Kv Magnetic Isolation|
|Integrated Cellular Access|
|4G LTE with fallback networks - HSPA+, UMTS, EDGE and GPRS|
|Antennae (Included)||Two multiband swivel-mount dipole antennae - SMA connectors|
|Cellular Data Rates||4G LTE ( Cat. 3 )
DL: max. 100 Mbps, UL: max. 50 Mbps HSPA+ DL Cat.24
DL: max. 42 Mbps, UL: max. 5.76 Mbps EDGE Class 12 data rates
DL: max. 237 kbps, UL: max. 237 kbps GPRS Class 12 data rates
DL: max. 85.6 kbps, UL: max. 85.6 kbps
|SIM Card slot (empty)||Accepts Micro SIM (3FF) as per reference standards:
ETSI TS 102 221 V9.0.0, Mini-UICC
The SIM card must be obtained by the user from their carrier of choice
|Power Supply||Dual AC power supply
USA Models: IEC320-C13 to NEMA 5-15P line cord
UK Models: IEC320-C13 to BS1363 line cord
EU Models: IEC320-C13 to CEE 7/7 Schuko
South Africa Models: IEC320-C13 to BS546 line cord
Australia Models: IEC320-C13 to AS3112 line cord
|Nominal Input Voltage||110/230v AC|
|Input Voltage Range||100-240v AC|
|AC Input Frequency||47-63Hz|
|Current Consumption @ 100v (Amps)||IOLAN SCG18: 0.19
IOLAN SCG34: 0.25
IOLAN SCG50: 0.31
|Current Consumption @ 240v (Amps)||IOLAN SCG18: 0.08
IOLAN SCG34: 0.11
IOLAN SCG50: 0.13
|Typical Power Consumption (Watts)||18.5 Watts
Note: USB cards can use an additional power of 2.5 Watts per port up to a max of 8 Watts total
|Power Line Protection||Fast transients: 1 KV (EN61000-4-4 Criteria B)
Surge: 2KV (EN61000-4-5 common mode), 1KV (EN61000-4-5 differential and common modes)
|Front Panel LCD Display and Keyboard Indicators|
|Network Link Activity
Serial Tx/Rx data per port
Network Link Activity
|Heat Output (BTU/HR)||IOLAN SCG18: 63.12
IOLAN SCG34: 85.30
IOLAN SCG50: 107.48
Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
|Operating Temperature||0°C to 55°C, 32°F to 131°F|
|Storage Temperature||-40°C to 85°C, -40°F to 185°F|
|Humidity||5 to 95% (non condensing) for both storage and operation.|
|Case||SECC Zinc plated sheet metal (1 mm)|
|Ingress Protection Rating||IP30|
|Mounting||1U - 19" rack, front and rear mounting hardware included|
|Product Weight and Dimensions|
|Product Weight||IOLAN SCG18: 3.30 kg / 7.27 lbs
IOLAN SCG34: 3.47 kg / 7.65 lbs
IOLAN SCG50: 3.64 kg / 8.02 lbs
|Dimensions||1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)|
|Shipping Dimensions||59 x 36 x 9cm|
|Shipping Weight||IOLAN SCG18: 4.24 kg / 9.35 lbs
IOLAN SCG34: 4.41 kg / 9.72 lbs
IOLAN SCG50: 4.58 kg / 10.10 lbs
|Emissions||FCC 47 Part 15 Subpart B Class A
EN61000-3-2 Limits for Harmonic Current Emissions
EN61000-3-3 Limits of Voltage Fluctuations and Flicker
EN 61000-4-2 (ESD): Contact:
EN 61000-4-3 (RS):
EN 61000-4-4 (EFT):
EN 61000-4-5 (Surge):
EN 61000-4-6 (CS):
EN 61000-4-8 (PFMF)
|Safety||UL/ULC/EN 62368-1 (previously 60950-1)
CAN/CSA C22.2 No. 62368-1-15
|Carrier Specific Approval||IOLAN SCG LA: Auto-detecting
IOLAN SCG LE: not required
|Cellular Radio||EN 301 908-1
EN 301 908-2
EN 301 511
47 CFR Part 22
47 CFR Part 24
EN 301 908-13
|Cellular Data Technologies Supported||IOLAN SCG LA:
- Penta Band LTE: 700/700/850/AWS (1700/2100)/1900 MHz; FDD-Band (13,17,5,4,2)
- Tri Band UMTS (WCDMA): 850/AWS (1700/2100)/1900 MHz; FDD-Band (5,4,2)
- Quad Band GSM/GPRS/EDGE: 850/900/1800/1900 MHz
|IOLAN SCG LE:
- Penta Band LTE: 800/900/1800/2100/2600 MHz;
- FDD-Band (20,8,3,7,1); Tri Band UMTS (WCDMA):
- 900/1800/2100 MHz; FDD-Band (8,3,1);
- Dual Band GSM/GPRS/EDGE: 900/1800 MH
|Other||Reach, RoHS and WEEE Compliant
CCATS - G168387
ECCN - 5A992
HTSUS Number: 8471.80.1000
Perle Limited Lifetime warranty
|IOLAN RJ45 Serial Connector Pinout - DCE mode (Straight-through)|
|IOLAN RJ45 Serial Connector Pinout - DTE mode (Rolled)|
|(A rolled RJ45 cable will automatically perform DTE to DCE crossover)|
|Data Center Console Management|
Using RAW TCP Sockets
A raw TCP socket connection which can be initiated from the serial-Ethernet device or from the remote host/server. This can either be on a point to point or shared basis where a serial device can be shared amongst multiple devices. TCP sessions can be initiated either from the TCP server application or from thePerle IOLAN serial-Ethernet adapter.
Using Raw UDP Sockets
For use with UDP based applications, Perle IOLANs can convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.
For access to remote console ports on routers, switches,etc, Perle IOLAN’s enable administrators secure access to these RS232 ports via inband Reverse Telnet / SSH or out of band with dial-up modems. Perle IOLAN models with integrated modems are available.
Connect Serial-based Applications with a COM/TTY Port Driver
Serial ports can be connected to network servers or workstations running Perle's TruePort software operating as a virtual COM port. Sessions can be initiated either from the Perle IOLAN or from TruePort.
Serial Tunneling between two Serial Devices
Serial Tunneling enables you to establish a link across Ethernet to a serial port on another IOLAN. Both IOLAN serial ports must be configured for Serial Tunneling (typically one serial port is configured as a Tunnel Server and the other serial port as a Tunnel Client).
Enables the serial-Ethernet adapter to simulate a modem connection. When connected to the IOLAN and initiates a modem connection, the IOLAN starts up a TCP connection to another IOLAN serial-Ethernet adapter configured with a Virtual Modem serial port or to a host running a TCP application.
