C-10G Media Converter Modules
10 Gigabit Copper and Fiber Converters
- Fiber to Fiber, copper to fiber and copper to copper conversion
- 2 empty slots that use a variety of 10G transceivers supplied by Perle, Cisco or other MSA compliant SFP+ and XFPs
- Advanced features –Smart Link Pass-Through, Fiber Fault Alert, Built-in Link Test Generator and Loopback
- High density applications with Perle MCR1900 Media Converter Chassis
- Support for Power Level 1,2,3 as well as high-power Level 4 XFPs
- Optical signal regeneration: 3R (re-amplify, reshape, and retime)
Installed in a high density MCR1900 Media Converter Chassis, Perle C-10G Media Converter Modules transparently connect 10 Gigabit Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with two pluggable transceiver ports that support fiber to fiber, copper to fiber or copper to copper media conversion. 10G Media Converter Modules are also available for managed networks with AAA security or and as stand alone models.
Fiber to Fiber and Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
The empty transceiver ports on the C-10G Media Converter Modules allow for flexible network configurations to meet any requirement using a variety of 10G transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFP+ and XFPs. You can use these products to convert:
- XFP to XFP
- XFP to SFP+
- SFP+ to CX4
Perle 10 Gigabit Ethernet to Fiber Converters provide an economical path to extend the distance of an existing 10GbE link. Network Administrators can “see-everything” with Perle’s advanced features such as Smart Link Pass-Through, Fiber Fault Alert, a built-in Link Test capability and Loopback. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make C-10G Media Converter Modules the smart choice for IT professionals.
C-10G Media Converter Features
| SFP Speed Sensing | Automatically detects whether a SFP has been inserted and adjusts the speed accordingly. |
| Smart Link Pass-Through |
When the Smart Link Pass-Through switch is enabled (default), each port will reflect the state of its port peer. In this mode, if a link loss is detected on one port, the transmit signal on the other port is disabled “passing through” the state of the failed link. This enables managed switches and other devices to report link failures to their network NMS. When the switch is in the down position, Smart Link Pass-Through is disabled. If a link loss is detected on one port, the transmit signal remains enabled on the other port. |
| Fiber Fault Alert | With Fiber Fault Alert the state of the 10 Gigabit Ethernet receiver is passed to the transmitter. This provides fault notification to the partner device attached to the 10G Ethernet interface of the media converter. |
| 3R – Optical Signal Regeneration | Optical signal regeneration: 3R ( Re-amplify, Reshape, and Retime the signal ) ensures that there is a quality link at 10 Gigabit speeds. |
| Built-in Link Test | When enabled, the built-in packet generator transmits Ethernet test frames to its 10 Gigabit Ethernet peer. The remote media converter will auto-detect the test frames and loopback the test frames. Any frames received in error, will cause the Power, LK1 and LK2 LEDs to illuminate in a specific combination to identify the error. During the test different bit test patterns will be utilized every 5 seconds ensuring a thorough link test. |
| Test Mode Auto-detect | When enabled through the management interface, the remote media converter will enter test mode automatically when requested by its central site peer. This virtually eliminates unnecessary truck rolls to a remote site when diagnosing a link failure. |
| EDC Mode Control | Electronic Dispersion Compensation (EDC) is an algorithmic method used to compensate for optical dispersion that occurs on high speed 10 Gigabit links. EDC mode settings are automatically configured by the media converter based on the information retrieved from the SFP+ or XFP module. This will enable proper operation for extended multimode 10GBase-LRM as well as active or passive copper cabling. |
| Module Temperature Protection | Protects your DOM/DMI capable SFP+ or XFP module by monitoring its internal temperature and will automatically shut down the XFP or SFP if the module is operating above its maximum temperature threshold. |
| High Power Level 4 XFPs | High powered Level 4 XFPs are supported in XTSH and XTXH models. |
| Gigabit SFP support | The 10 Gigabit media converter model with dual SFP+ slots can also support Gigabit (1000Base-X) SFPs. This allows users to use Gigabit SFPs today and migrate to 10G SFP+ in the future. Both slots must be populated with Gigabit SFPs. |
| Jumbo Packets | Transparent to Jumbo Frames with a maximum MTU size of 10,024 bytes |
| VLAN | Transparent to VLAN tagged packets. |
| Remote Loopback | Capable of performing a loopback on each 10 Gigabit interface. In this mode, all frames received on the port in loopback mode will be transmitted back. This provides users with the capability of utilizing their own in-house test generators for testing the link. |
Hardware Specifications
| Power | Dual XFP | XFP to SFP |
|---|---|---|
| Maximum Power Consumption (watts) | XTX: 12.0 * XTXH: 16.3 * |
XTS: 9.1 * XTSH: 16.3 * |
| Total Transceiver Power Supported (watts) | XTX: 7.0 XTXH: 11.0 |
XTS: 5.0 XTSH: 7.0 |
| Indicators | ||
| Power / TST |
|
|
| LK1, LK2 |
|
|
| Switches | ||
| Smart Link Pass-Through | When the Smart Link Pass-Through switch is enabled (default), each port will reflect the state of its port peer. In this mode, if a link loss is detected on one port, the transmit signal on the other port is disabled “passing through” the state of the failed link. This enables managed switches and other devices to report link failures to their network NMS.
When the switch is in the down position, Smart Link Pass-Through is disabled. If a link loss is detected on one port, the transmit signal remains enabled on the other port. |
|
| Fiber Fault Alert | Enabled (Default - Up) With Fiber Fault Alert the state of the 10 Gigabit ethernet receiver is passed to the transmitter. This provides fault notification to the partner device attached to the 10G ethernet interface of the media converter Disabled (Down) |
|
| EDC Mode | Electronic Dispersion Compensation (EDC) is an algorithmic method used to compensate for optical dispersion that occurs on high speed 10 Gigabit links. EDC mode settings are automatically configured by the media converter based on the information retrieved from the SFP+ or XFP module. This will enable proper operation for extended multimode 10GBase-LRM as well as active or passive copper cabling.
In the default UP switch position the media converter will automatically set the 10G transceiver to match the EDC type declared by the SFP+ / XFP module to either to “linear” or “limiting”. In the event that there is a mismatch, setting the switch to the Down position on the media converter will flip the setting to that declared by the module. |
|
| Loopback | Capable of performing a loopback on each 10 Gigabit interface. In this mode, all frames received on the port in loopback mode will be transmitted back. This provides users with the capability of utilizing their own in-house test generators for testing the link. | |
| Connectors | Dual XFP | XFP to SFP |
| Pluggable 10G Fiber Transceiver slots (Hot insertion and removable) | Two 10 Gigabit XFP Slots
|
One 10 Gigabit SFP+
|
| Voltages supplied to XFP slots | 1.8V, 3.3V, 5V and -5.2V | 1.8V, 3.3V, 5V and -5.2V |
| Supported 10 Gigabit Fiber pluggable transceivers | IEEE 802.3ae compliant:
|
IEEE 802.3ae compliant:
|
| Supported 10 Gigabit Copper pluggable transceivers | IEEE 802.3ak compliant:
|
SFP+ Direct Attach Cable (DAC). Also known as:
IEEE 802.3ak compliant:
|
| Chassis Slot profile | XTX: one slot
XTXH: two slots |
XTS: one slot
XTSH: two slots |
| Environmental Specifications | Dual XFP | XFP to SFP |
| Operating Temperature | 0° C to 50° C (32° F to 122° F) | |
| Storage Temperature | minimum range of -25° C to 70° C (-13° F to 158° F) | |
| Operating Humidity | 5% to 90% non-condensing | |
| Storage Humidity | 5% to 95% non-condensing | |
| Operating Altitude | Up to 3,048 meters (10,000 feet) | |
| Heat Output (BTU/HR) |
XTX: 39.2
XTXH: 55.6 |
XTS: 31.0
XTSH: 55.6 |
| MTBF (Hours) Calculation model based on MIL-HDBK-217-FN2 @ 30 °C |
335,191 | 335,191 |
| Packaging | ||
| Shipping Weight | 0.25 Kg, 0.55 lbs | |
| Shipping Dimensions | Standard Power Models: 150 x 210 x 40 mm, 5.9 x 8.3 x 1.6 inches
High Power models (XTXH, XTSH): 170 x 260 x 70 mm, 6.7 x 10.2 x 2.8 inches |
|
| Regulatory Approvals | ||
| Emissions | FCC Part 15 Class A, EN55022 Class A | |
| CISPR 22 Class A CISPR 32:2015/EN 55032:2015 (Class A) |
||
| EN61000-3-2 | ||
| Immunity | EN55024 | |
| Safety | UL/EN/IEC 62368-1 CAN/CSA C22.2 No. 62368-1 |
|
| UL 60950-1 IEC 60950-1(ed 2); am1, am2 EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
||
| CE | ||
| Laser Safety | Dependent on SFPs used. SFPs that meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11 are recommended for use with this product. | |
| Environmental | Reach, RoHS and WEEE Compliant | |
| Other | ECCN: 5A991 | |
| HTSUS Number: 8517.62.0020 | ||
| Perle Limited Lifetime Warranty | ||
*Maximum rating for both media converter and modules inserted. Actual rating is dependent on the power consumption of the SFP+/XFP modules inserted.
| 10 Gigabit Ethernet Fiber Repeater |
|---|
|
Extend the network distance of 10 Gigabit Fiber Links
|
| 10 Gigabit Ethernet Fiber Extender |
|
Extend the network distance between two 10 Gigabit Fiber Switches
|
| 10 Gigabit Copper to Fiber Media Conversion |
|
Convert one 10G Ethernet media to another
|
| 10 Gigabit Datacenter Fiber Upgrade |
|
Replace old CX4 switch with a new fiber switch
|

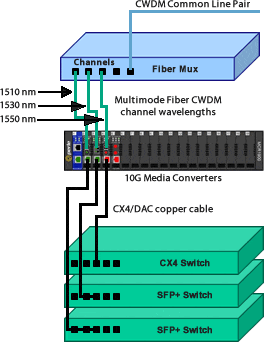

| CWDM Transponder |
|
Connect XFP to SFP+ and SFP+ to SFP+ Media Converters to Fiber Mux
|
| DWDM Transponder |
|
Set wavelength on tune-able XFP DWDMs via media converter management
|
Click on 'Model Name' to see part numbers
| Model | Port | Slot | SFP+ Power Levels | XFP Power Levels | Maximum Total Transceiver Power Supported |
|---|---|---|---|---|---|
| C-10G-XTS | Port 1 | XFP | - | Level 1 (up to 1.0 watts) | 5.0 watts |
| - | Level 2 (1.5 to 2.5 watts) | ||||
| - | Level 3 (2.5 to 3.5 watts) | ||||
| Port 2 | SFP+ | Level 1 (up to 1.0 watts) | - | ||
| Level 2 (up to 1.5 watts) | - | ||||
| C-10G-XTSH | Port 1 | XFP | - | Level 1 (up to 1.0 watts) | 7.0 watts |
| - | Level 2 (1.5 to 2.5 watts) | ||||
| - | Level 3 (2.5 to 3.5 watts) | ||||
| - | Level 4 (3.5 to 5.5 watts) | ||||
| Port 2 | SFP+ | Level 1 (up to 1.0 watts) | - | ||
| Level 2 (up to 1.5 watts) | - | ||||
| C-10G-XTX | Port 1 | XFP | - | Level 1 (up to 1.0 watts) | 7.0 watts |
| - | Level 2 (1.5 to 2.5 watts) | ||||
| - | Level 3 (2.5 to 3.5 watts) | ||||
| Port 2 | XFP | - | Level 1 (up to 1.0 watts) | ||
| - | Level 2 (1.5 to 2.5 watts) | ||||
| - | Level 3 (2.5 to 3.5 watts) | ||||
| C-10G-XTXH | Port 1 | XFP | - | Level 1 (up to 1.0 watts) | 11.0 watts |
| - | Level 2 (1.5 to 2.5 watts) | ||||
| - | Level 3 (2.5 to 3.5 watts) | ||||
| - | Level 4 (3.5 to 5.5 watts) | ||||
| Port 2 | XFP | - | Level 1 (up to 1.0 watts) | ||
| - | Level 2 (1.5 to 2.5 watts) | ||||
| - | Level 3 (2.5 to 3.5 watts) | ||||
| - | Level 4 (3.5 to 5.5 watts) |
